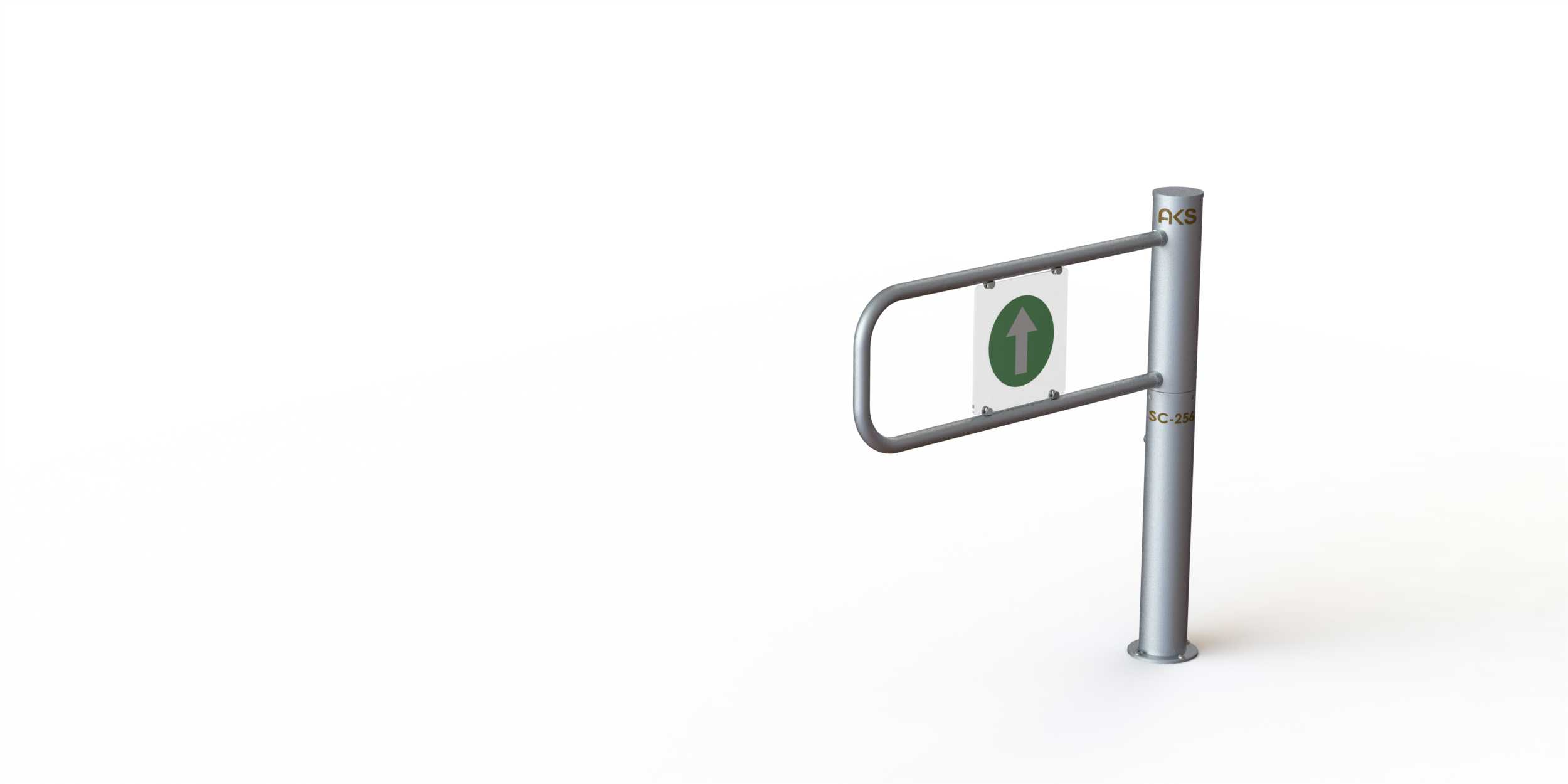

SC-256 Mechanical Turnstile

SC-256 Mechanical Turnstile

Mechanical turnstiles are specially designed for VIP passages, disabled passages or material passages. All mechanical turnstiles manufactured in our facilities are made of only stainless steel. They can be used comfortably in indoor and outdoor areas. If desired, “STOP”, “PASS” and “disabled” signs can be added to the plexiglass. Mechanical turnstiles with electric locks operate with 24V DC. The mechanical turnstile is opened by pushing it manually, and closed by means of a spring. In times of danger and for special situations, the turnstile can be left open continuously. In the event of a power outage, the turnstile goes into a free position and can be opened by gently pushing it manually. SC-256 Mechanical turnstile is a spring-loaded turnstile with a mechanical lock. It can be applied for one-way or two-way passage.


Body 304 quality stainless steel cylindrical body.
Mechanism Cast material, precision CNC machining, spring mechanism.
Wing  32x1.5 mm one-piece stainless steel tube, plexiglass in the middle.
Dimensions 150x150x1000 mm, Cylinder Diameter:102 mm Wing:500-875 mm, ~18 kg
Temperature -20 / +60 °C
Working Mode  Mechanically locked. It opens with the key. It can still be left open with the key.

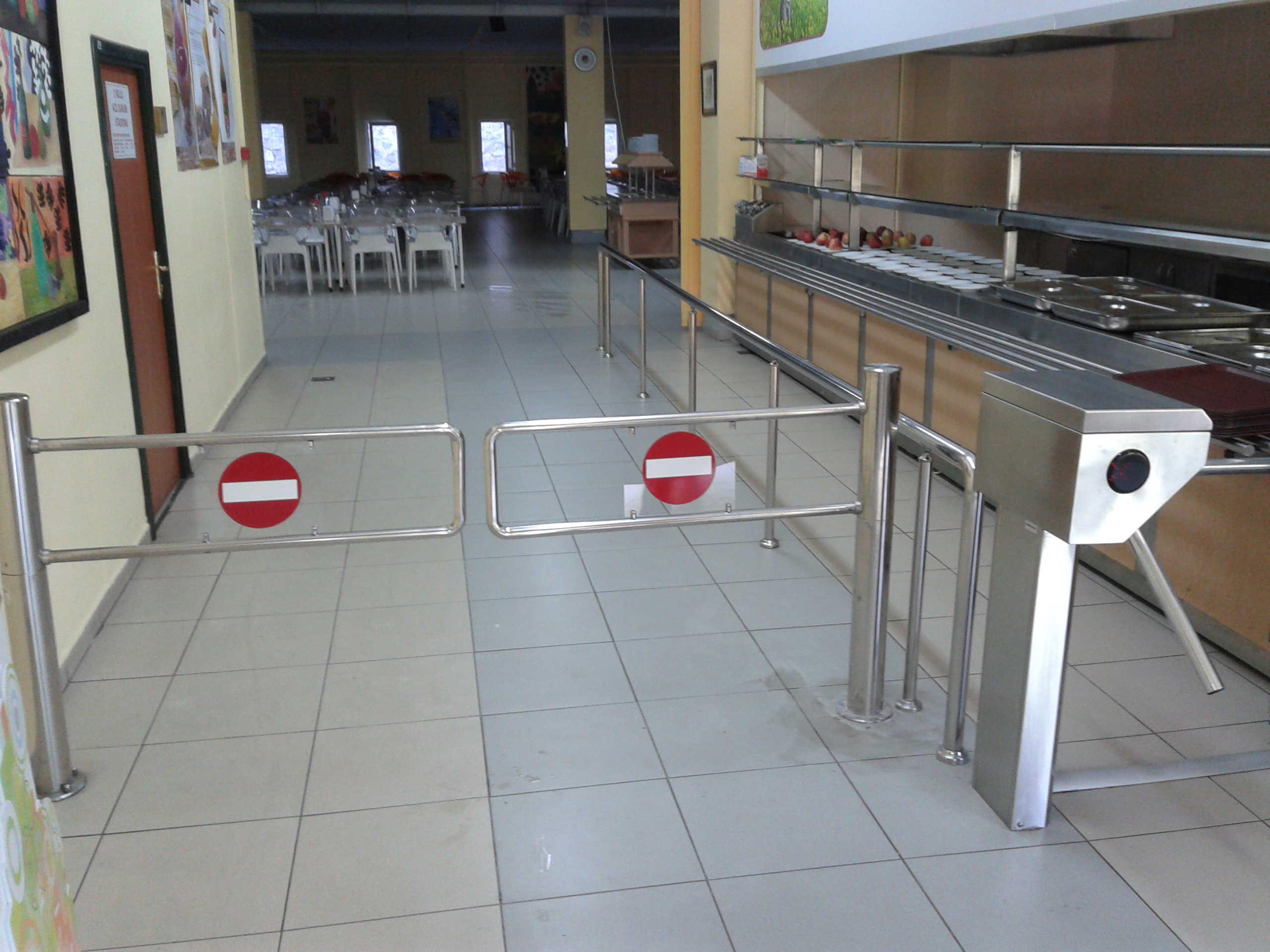

Purpose of Use  It is used for free passage, material passage. By using them mutually, a large area is obtained.
Option  Your logo printed on the wing.
