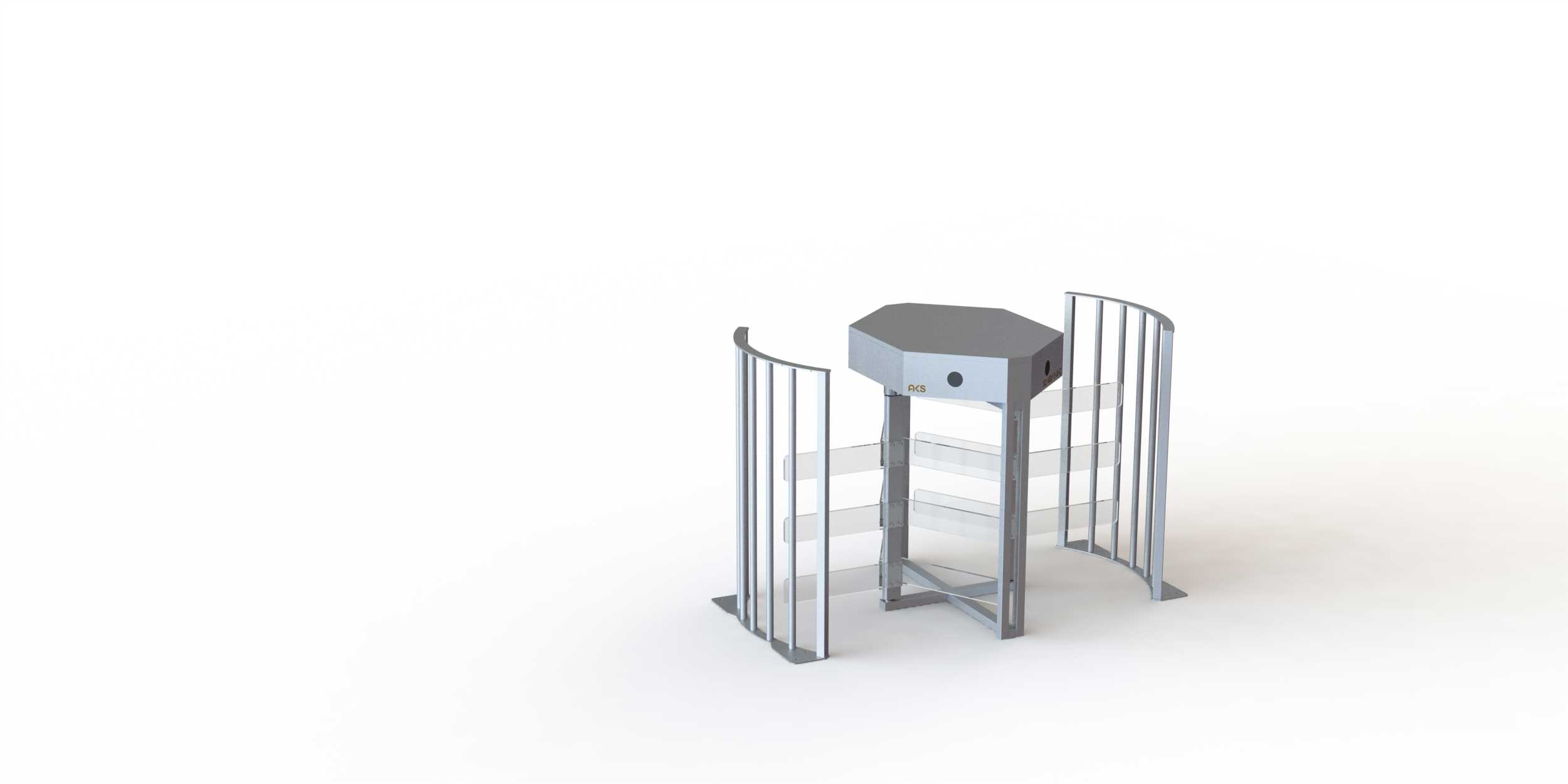

SC-432-Y-C-D Half height turnstiles are generally designed to be used in situations where the passage of crowded groups of people needs to be controlled, such as factories. Two ACS-551 and ACS-451 card readers can be integrated onto the SC-432-Y-C-D half height turnstile. The SC-432-Y-C-D half height turnstile can be used in one or two directions. Direction selection can be easily made by users. It can give an audible warning when desired. Memory feature can be used for multiple passages. Remote passage permission can be given or removed independently of the person passing. Thanks to its optical sensors, information can be obtained about the position, movement and direction of the SC-432-Y-C-D half height turnstile arms. There is a data output for the counter or other control systems when passage is made. All mechanical parts and electromechanical control systems are manufactured in our facilities. The SC-432-Y-C-D half height turnstile series, which can be used in indoor and outdoor areas, can be manufactured in electrostatic powder paint or stainless steel.
Body | 60x40 mm profile frame, 1.5 mm sheet steel. (Electrostatic powder coated or 304 stainless steel) |
Coupling | Aluminum casting, precision CNC machining. |
Mechanism | 10 mm laser cut steel sheet, precision CNC machining, stainless steel impeller. 3 lever mechanism. |
Arms | 10 mm laser cut plexiglass, 3 rows of arms screwed to the middle rotor. |
Dimensions | 2080x1150x1300 mm, Arm 550 mm, Transition range 580mm ~280 kg |
Indicators | Both directions on top panel. |
Energy and Power | 176-264 V AC 50-60 Hz / 24V DC Max: 50 W |
Temperature | -20 / +60 °C |
Working Mode | Two-way locked, one-way locked, one-way free, both directions free, adjustable trigger time. |
Features | Single contact, two-way switching, memory mode, service port, internal operation and transition counters. |
Outputs | Dry contact pass information separately for both directions, PC control port. |
Emergency | Free mode with emergency input, free mode when there is no power. |
Safety Status | With the safety status input, the turnstile goes into locked mode and never opens. |
Capacity | 40 people / minute |
Option | RF control card, counter, button, coin unit, reader unit, heater. |
